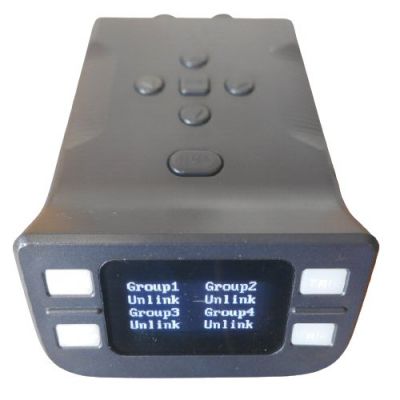

Genie IBP10 Ethernet Beltpack with 4 Channels

Product Features

MPN: IBP10

Genie Ethernet Beltpack:

Can be configured with Base Station BS850 or BS1000 through the Remote Antenna.
Power and data redundancy: Daisy-chain ring connection.
Two Daisy-chain ring PoE Lines (PoE standard power and data),
Headset connector (6pin Mini-Din Receptacle), 3.5Ø TRS Headset connector.
OLED display,

4 Talk keys,

2 x Volume buttons (Channel shift),

2 x Volume Shift,

Menu button,

Call button.

LAN Cable
Use a LAN cable higher specification/quality than CAT-5e STP (Shield Twisted Pair).
The use of the UTP cable can cause several problems depending on the installation environments.
!!! Note: Make sure that you use cable wired pin to pin for the LAN. Do not use Cross pair cables. This can cause serious damage to the device.
